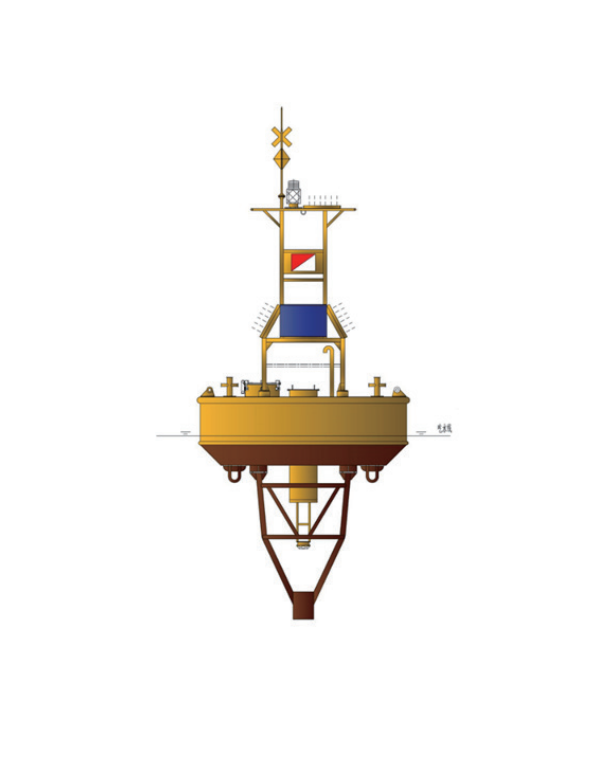

HY-BMS Buoy Monitoring System

●Buoy carriers can be customized:hydrological moni-toring buoys,Marine environment monitoring buoys,new material buoys and others can be selected.

●Simultaneously monitoring multiple hydrologicalparameters and a high degree of integration:it can beequipped with various sensors such as ADCP,meteo-rological sensors,as well as temperature,salinity anddepth meters at the same time,providing comprehen-sive hydrological information.

●Real-time data acquisition and transmission:buoyscapture hydrological data in real time and transmit thedata to ground stations or satellites for real-time


HY-BMS is an intelligent buoy System that is suitable  for hydrological, environmental and meteorological  monitoring. It uses buoys as sensor carriers that are  capable of configurating monitoring devices such as  GNSS, ADCP, attitude sensors, and meteorological  sensors to continuously obtain data like the position, attitude, water depth, flow velocity, direction,  and temperature near the buoy. Through the RTU communication module, the observed data is transmitted in real time to the server  for storage and reflects the hydrological and meteorological changes in the nearshore sea area in real  time and continuously. Observation data can provide data support for subsequent big data analysis  and numerical simulation of the marine environment.

Height                 8.70mHeight               5.90m
Diameter3.05mDiameter3.00 m
Waterline                       4.43mWaterline                    2.87m
Weight8300 kgInstrument WellFour
Thickness of Buoy Steel Plate10.0 mmMaterial316 stainless steel
Barycenter2.86mBuoyancy TankFour
Center of Buoyancy        3.18mFloating Structure  Assembled type
Metacentric Height(GM)0.86mMonitoring ParametersTemp.,air pressure,
wave,flow velocity,
direction,position,etc.
Instrument Well              Two(increasable)
Floating StructureAssembled type
