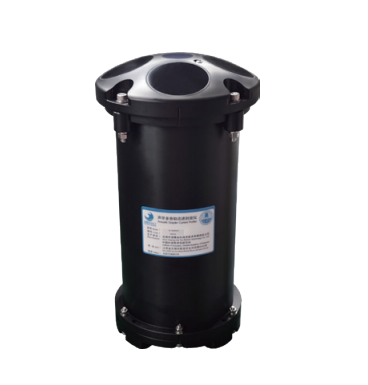

HY-SC Series Marine Acoustic Doppler Current Profiler

● Excellent signal processing technology for high-accuracy,high-resolution and reliable data.

● Modular design layout for compact structure and fewer space.

● Dual installation ways:waist clamp installation and tail screw installation.

● Multiple bandwidths are optional for best configuration.

● Equipped with a large-capacity built-in battery,allowing it to operate independently and flexible touse.

● Multiple data output format.

● Multiple communication interface:RS232,RS422,RS485,Ethernet communication.

● Support exporting specific data:Flow velocity,correlation coefficient,echo intensity,bottommeasurement results,sensor data,etc.can beexported to meet the professional needs of users.

● Multiple wake-up ways:real-time wake-up,Break wake-up,and synchronous wake-up methods.

● Real-time control of the ADCP and data will be transmitted back to the upper computer in eachworking cycle.

● Multiple data display ways:single-frame display,pseudo-color display,and original AD datawaveform display.

● Available to calculate the total power consumption and data occupation space based on the setparameters.

● Customizable:It can be customized according to the user's needs.

Ask for a Quote Back

Product Overview Specifications Case Study Download

The SC series is a series of marine self-contained high-precision Doppler current profiler with full independent intellectual property rights, adopting the technology of the Institute of Acoustics, Chinese Academy of Sciences. It is available in frequencies of 75 kHz, 150 kHz, 300 kHz, 600 kHz and 1200 kHz, and in the depth rating of 11000 m. It is equipped with a large-capacity built-in battery, allowing it to operate independently without external cable power supply and flexible to use with excellent comprehensive performance, applicable to various working conditions such as bottoming, mooring, buoys and Marine engineering platforms. It is an ideal choice for assisting in Marine exploration, Marine ecological research, Marine environment monitoring and Marine engineering.

Model	SC-75			SC-150
Frequency	75kHz			150kHz
Mode and Profiling Range
Boardband	600m			260m
Narrow Band	690m			332m
Communication and Storage
Interface	RS422、RS232、RS485 optional,10M Ethernet
Synchronous Input/Output	TTL/RS485
Storage	Standard 2GB
Profiling Velocity
Accuracy	±1%±5mm/s
Resolution	1mm/s
Range	±10m/s
Layer Size	4m~32m			2m~24m
Layer Number	1~128			1~128
Ping Rate	0.5Hz			1Hz
Bottom Velocity
Range	1000m			500m
Accuracy	±0.5%±5mm/s			±0.5%±5mm/s
Resolution	1mm/s
Physical Structure
Housing Material	Aluminium
Depth Rating	1500m	3000m	6000m	1500m	3000m	6000m
Diameter	178mm	202mm		178mm	202mm
Total Length	1070mm			765mm
Transducer	575mm			500mm
Beam Inclination	20°			20°
Configuration	4 beams
Weight in Air	90kg	105kg	109kg	60kg	71kg	74kg
Weight in Water	48kg	58kg	61kg	34kg	41kg	42kg
Sensor
Pressure	Range:4000m and 6000m;Accuracy:±0.25%FS
Temperature	Range:-55℃~+125℃;Accuracy:±0.5℃
Attitude	Range:pitch±90°,roll±180°;Tilt accuracy:0.2°;Course accuracy:0.5°
Environment
Operation Temp.	-5°~+50°C
Storage Temp.	-40°~+60°C			-40°~+60°C
Power Supply
External Voltage	30~45VDC			30~45VDC
Battery Voltage	42VDC
Battery Capacity	4 groups of batteries,each group 550Wh, a total of 2200Wh			2 groups of batteries,each group 550Wh,a total of 1100Wh
Typical Power Consumption	9.23W(45V power supply,16m layer size, and Ping rate of 0.5Hz)			12W(45V power supply,16m layer size, and Ping rate of 1Hz)
Continuous Working Time	330 days(Typical mode)			290 days(Typical mode)
Software	Windows operating system with MSCADCP display and control software installed
