Accurate and reliable sound velocity measurement using “Time of Flight” technology;
Compact 316 stainless steel housing that is corrosion and pressure resistant;
Easy-to-clean, streamlined, and flexible integration structure design；
Direct path ultrasonic echosounding with a 2MHz transducer element

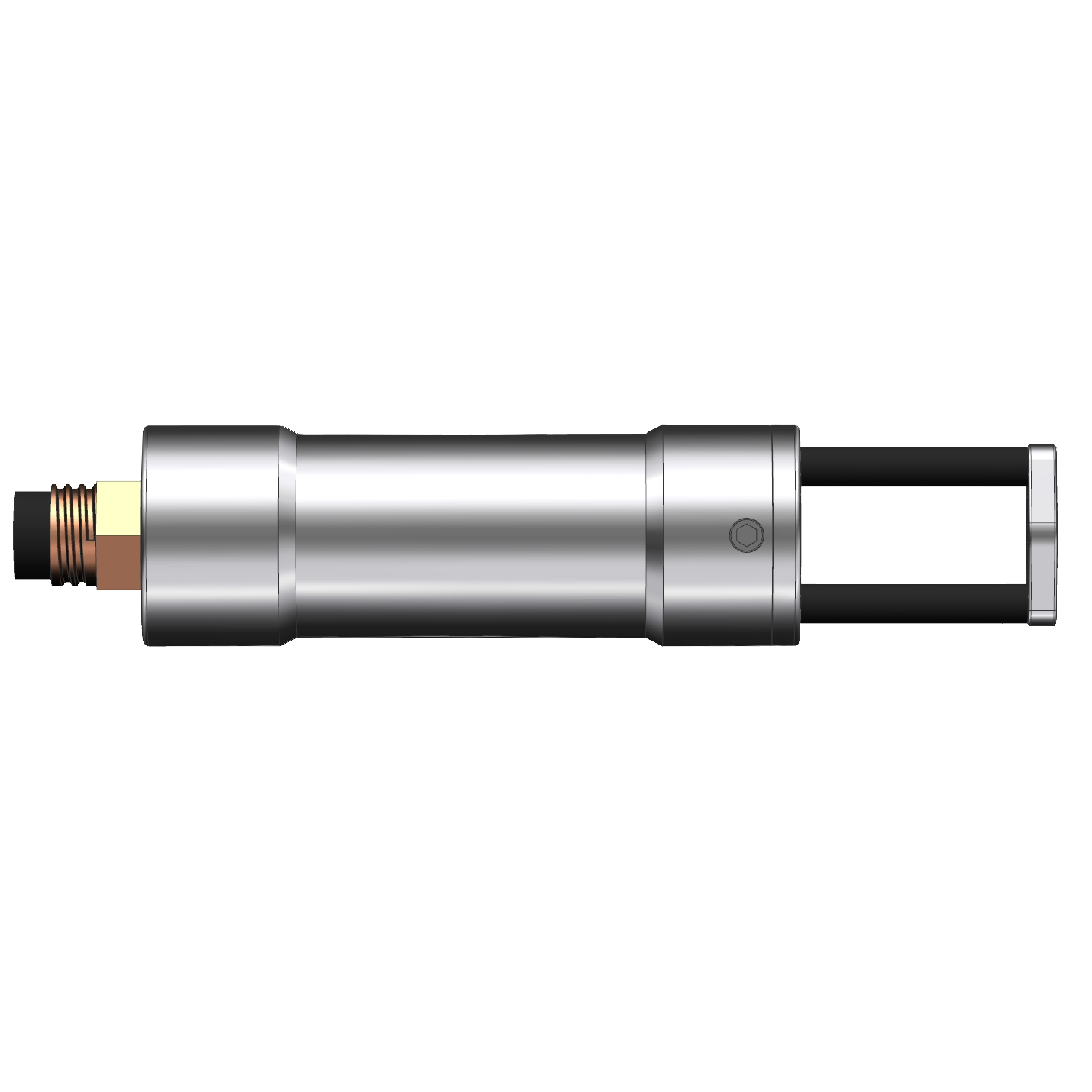

The HY1202 series is a full-sea surface velocity profiler for real-time sound velocity measurement in sea (river, lake) water. The standard depth rated is 50 meters and the maximum can reach 11000m. It is often used for fixed installation on ships to perform depth correction of single beam depth sounder, beam width correction of multi-beam echosounder and correction of sound ray bending. It can also be integrated into autonomous navigation platforms such as submarines, AUVs and ROVs to meet special task requirements.
Data storage | Up to 100 files, 1 million sets of data | ||
I/O Interfaces
| Connector: MCBH6M (316 stainless steel) Output: RS232 serial port Baud: 9600-115200 Output Formats: Universal programmable ASCII, Valeport, AML, NMEA and others | ||
Power | 12 VDC（7VDC-20VDC）,0.5W typical, 1W maximum | ||
Cable length | 1.5m (standard) | ||
Depth rated | 50 meter (standard), 3000-10000 meter (customized) | ||
Dimension/weight | 190 mm (L) × 39 mm (D)，450g in air（W/O cable） | ||
Probe | Range | Resolution | Accuracy |
SV (m/sec.) | 1400~1700 | 0.001 | 0.05m/s@50m |
