● Ultra-wide broad band transducer.
●Compact and portable,IP67 protection rating
● Mature parametric array technology
● Easy installation and operation
● Strong penetration ability,large working distance.
● Split structure causing the strong working adaptability.
● Optional harmonic high-frequency high-precisiondepth measurement.

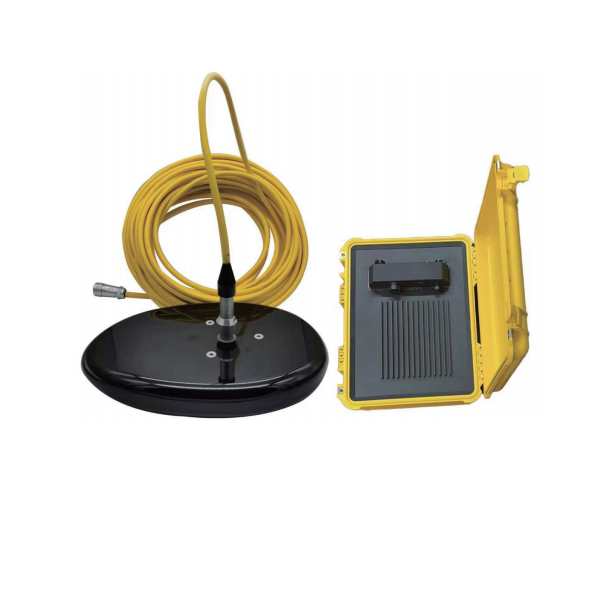

HY-PSB100S is one of the parametric array sub-bottom HY-PSB product series with a split structure, using the primary frequency of 100KHz and a difference frequency coverage model. On the basis of high resolution, it has excellent penetration ability and working range, adapted to sub-bottom profile detection and precise water depth measurement. The HY-PSB100S is compact and easy to install. It has an IP67 protection rating and strong operational adaptability, which makes it highly suitable for use on smallsized and temporarily rented vessels.
| Primary Frequency | 90～120 kHz |
| Difference Frequency | 5～20 kHz |
| Pulse Length | 0.05～1ms |
| Pulse Type | CW,Chirp optional |
| Ping Rate | Max20 ping/sec. |
| Primary Frequency Angle | 4.5° |
| Difference Frequency Angle | 5 deg |
| Primary Frequency Source Level | >238 dB/uPa@1m 100 kHz |
| Difference Frequency Source Level | >194 dB/uPa@1m 20 kHz |
| Dynamic Range | >110 dB |
| Distance Resolution | Optimum 5cm |
| Penetration Ability | Max 40m(depending on the type of substrate and noise situation) |
| Working Distance | <200 m |
| Attitude Compensation | Providing heave correction and compensation |
| Harmonic Depth Measurement Resolution | 2.5 cm |
| Parameters | |
| Consumption | <150 W |
| Power supply | 24 VDC or220 VAC to 24 VDC |
| Communication | Ethernet |
| External Interface | GPS,attitude sensor |
| Transducer Dimension and Weight | 362×240×50 mm,10kg |
| Deck Unit Dimension and Weight | 500×400×190 mm,11.2kg |
| Protection Rating | IP67 |
