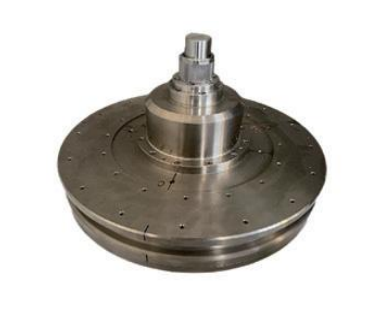

HY Phased Array Acoustic Doppler Current Profiler

The Phased Array ADCP is a split structure, utilizing the  mature phased array technology and advanced broadband complex correlation algorithm an the weak signal  extraction technology in noisy environment guaranteeing its reliable use in complex marine environments, featuring high accuracy, strong installation adaptability, and  easy maintenance. It can also be adapted to various universal communication interfaces according to user requirements. The  PA-ADCP can be mounted on various platforms to measure the carrier velocity and the ocean profile flow velocity and is widely used in various marine projects.

The Phased Array ADCP is a split structure, utilizing the  mature phased array technology and advanced broadband complex correlation algorithm an the weak signal  extraction technology in noisy environment guaranteeing its reliable use in complex marine environments, featuring high accuracy, strong installation adaptability, and  easy maintenance. It can also be adapted to various universal communication interfaces according to user requirements. The  PA-ADCP can be mounted on various platforms to measure the carrier velocity and the ocean profile flow velocity and is widely used in various marine projects.

Model38   75
Frequency                           38KHz                                     75KHz
Configuration4 beam phases array4 beam phases array
Beam Angle                            30°
Bottom Range2000m1000m
Velocity Profile Range                 800m450m
Layers1~1281~128
Layer Size                            8~32m8~32m
Long-term Accuracy±1%±1cm/s±1%±1cm/s
Operation Temp.                     -5℃~45℃-5℃~45℃
Storage Temp.-30℃~60℃-30℃~60℃
Power Supply                          AC 220VAC220V
Consumption<3000W<2000W
Interface            Muti universal interfaces are optional   Muti universal interfaces are optional
Dimension(mm)φ800x252(transducer)
295×430x255(deck unit)
400×300x150(power box)
中380x147(transducer)
295×430×255(deck unit)
400x300x150(power box)
Weight in Air(kg)≤235(transducer)               ≤35(deck unit)
≤25(power box)
≤30(transducer)                                                                ≤35(deck unit)
≤25(power box)
House MaterialStainless steel (transducer)
   Cast aluminum (deck unit)
   Cast aluminum(power box)
Titanium alloy (transducer)                                        Aluminum alloy(deck unit)                                            Cast aluminum(power box)
