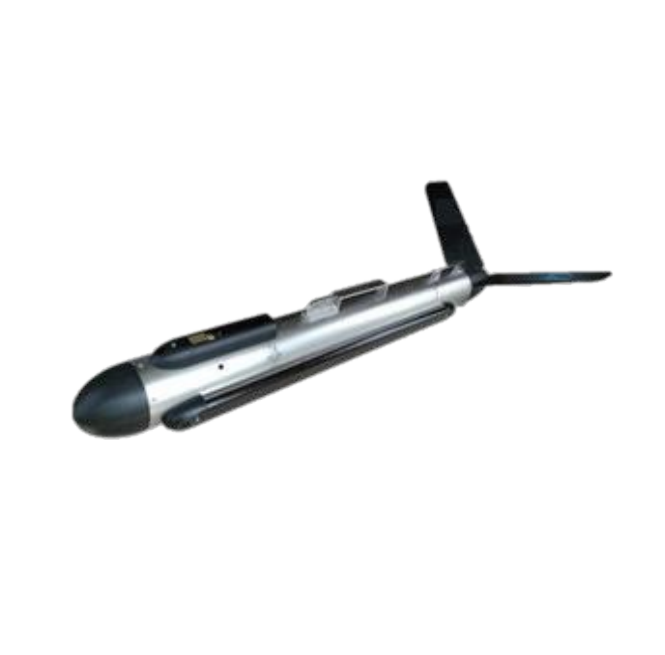

SharkSAS-HF II Synthetic Aperture Sidescan Sonar

● Integrated with full mapping and constant high-resolution imaging ability

● Real-time imagery processing and display

● Extremely efficient wide-area imaging and exploration ability

● Target detection and autonomous recongnition

● Compact,portable,simple operation that it can be operated by a single person


The SharkSAS-HF II, highly efficient imaging side-scan  sonar, boasts a large scanning range, high imaging accuracy and constant resolution. It streams a continuous  high-definition imagery of underwater suspended objects and sunken targets in real time. The new generation of products utilizes a brand-new technical system. Under the premise of maintaining excellent imaging accuracy and scanning width, the working speed has been doubled to 5 to 6 km²/h of the mapping efficiency.

ItemValue
Azimuth Resolution                                                 2.5 cm
Range Resolution2.0 cm
Max Detection Distance(Single Side)                       250m
Detection Efficiency3.6  km²/5.0  km²
Work Speed                                     2 kn~10 kn
Max Submersion Depth100 m/300 m/1000 m/3000 m
Others                                 Autonomous detection and recognition capability
