HY1621 Multibeam Echosounder
  • Splendid industrial design with ruggedized composite materials.

  • Highly integrated for any vessel portable mobilization.

  • Leading bottom detection algorithm, combined amplitude-phase detection, allowing for improved swath performance either in both central and edge of baseline, ensuring efficiency of survey and post-processing.

  • Fully automatic operation for less workforce.

  • Real-time roll stabilization, allowing for accurate data in full depth range.

  • Windows®-based GUI user interface, compatible with all major post-processing software.

  • Multiple universal interfaces for positioning and attitude data input.


The HY1621 is a brand new high resolution multibeam echosounder product series with full proprietary intellectual property of Haiying Marine. The ideally selected 210kHz frequency provides excellent data quality and ease of use over depths from 1m to 500m. Equi-Distant and Equi-Angle modes can be selected from operation software. With comparable performance to that of similar advanced MBEs in the world, the HY1621 is perfectly used in channel dredging, geological survey, coastal and estuary survey, shipwreck salvage and other applications.

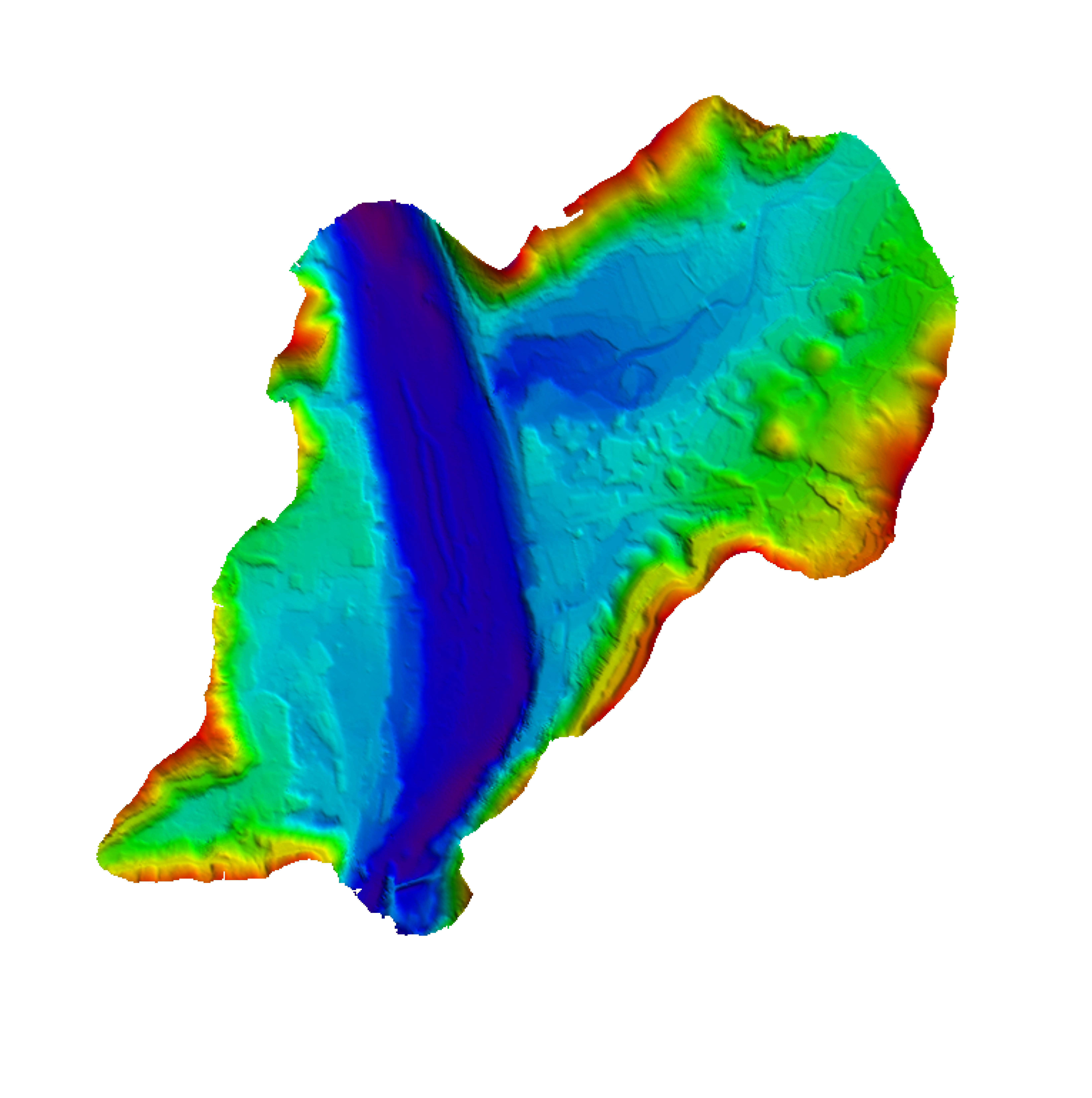

Data example of HY1621 multibeam echosounder, surveyed in Xin’an River, China


Frequency

210kHz

Source level

220dB

Pulse length

50us~500us, adjustable

Depth range

1~500m (slant range)

Resolution

1cm

Accuracy

Comply with IHO S44 standard

Swath coverage

100°~140°

Number of beams

320

Beam width

1.5°×1.5°

Ping rate

Up to 40 Pings/s

Roll stabilization

±10°

Beam distribution mode

Equi-Distant or Equi-Angle

Input voltage

110~240VAC   50/60Hz

Average power

100W

IP grade

IP67

Cable length

25m (standard), Optional: 15m, 50m or 100m

Operation temp.

-10°C~+40°C

Storage temp.

-40°C~+70°C

Dimension of receiver

456mm (L)×215mm (W)×145mm (H)

Dimension of projector

275mm (L)×115mm (W)×83mm (H)

Weight of sonarhead

13.9kg in air

Dimension of topside processor

315mm (L)×215mm (W)×105 mm (H)

Weight of topside processor

2.95kg

Depth rating (sonar head)

50m

Warranty

1 year

Composition

T type sonar head, topside processor, 25m watertight cable, mounting bracket, fairing
