HY1622-USV All-in-one Muti-beam Echosounder

● All-in-one multi-beam echosounder.

●Integrated with high-precision sound velocity sen-sor with higher data accuracy and better measure-ment results.

● One-touch operation function,with minimal train-ing required,installation or calibration.On-siteinstallation only takes few minutes before water op-eration.

● Capable of being integrated with any unmanned ve-hicles quickly.

● Stable and reliable data benefiting from fast on-siteone-click data processing and noise automatic fil-tering technology.

● Extremely shallow depth measurement up to 0.2meters.

Ask for a Quote Back

Product Overview Specifications Case Study Download

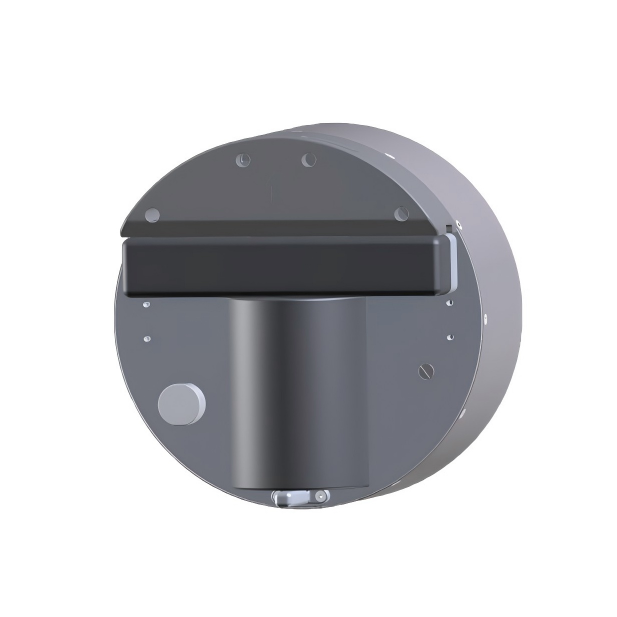

The HY1622-USV is an advanced, innovative and groundbreaking unmanned vehicle muti-beam echosounder, fully meeting the industry development needs for further miniaturization, unmanned and intelligentization of multi-beam echosounder. The HY1622-USV has only one sonar probe highly suitable for the integration of smaller unmanned vehicles. Besides conventional measurement applications, it has an unparalleled cost performance regarding the measurement of river and lake cross-sections and reservoir capacity in the water conservancy industry.

Depth Range	0.2～200 m
Depth Resolution	0.75cm
Sounding Mode	Equal angle/equal distance/dynamic focus
Strip Sweeping Width	Standard configuration:30~143°(customizable)
Beam Angle	1°×2°
Configuration	512 beams,max.1024 beams
Max Ping Rate	60 Hz
Frequency	400 kHz
Signal Type	CW/Chirp
Pulse Width	30 us～8 ms
Depth Rating(Acoustic Probe)	50 m
Functions	Real-time roll stabilization,near-field focusing,water body imaging,etc
Attitude Installation	Built-in sonar,no installation or calibration
Heading Accuracy (Effective with GNSS)	0.08°(2m baseline)
Attitude Accuracy (Effective with GNSS)	0.025°(post-processing);0.03°(RTK)
Horizontal Positioning Accuracy	±0.008+1ppm elevation:±0.015+1ppm
Heave Accuracy	5cm or5 %;2cm or2%(post-processing)
Surface Sound Velocity	Range:1400～1600 m/s Resolution:0.001 m/s Accuracy:0.05 m/s
Input Power	12～48V
Max.Power	80 W
Data Interface	Gigabit network port,RTK serial port
Cable Length	Standard configuration:15m or custom installation integrated at the ship end
Dimension(Sonar)	φ220 mmxH139 mm (exc.connector)
Weight (Sonar)	5.55 kg(in air,including three 0.6-meter cables)
Dimension(Deck Unit)	200mm×145mm×107mm
Weight(DeckUnit)	1.5kg
Operating Temp.	-2℃~40℃
Storage Temp.	-20℃~55℃
