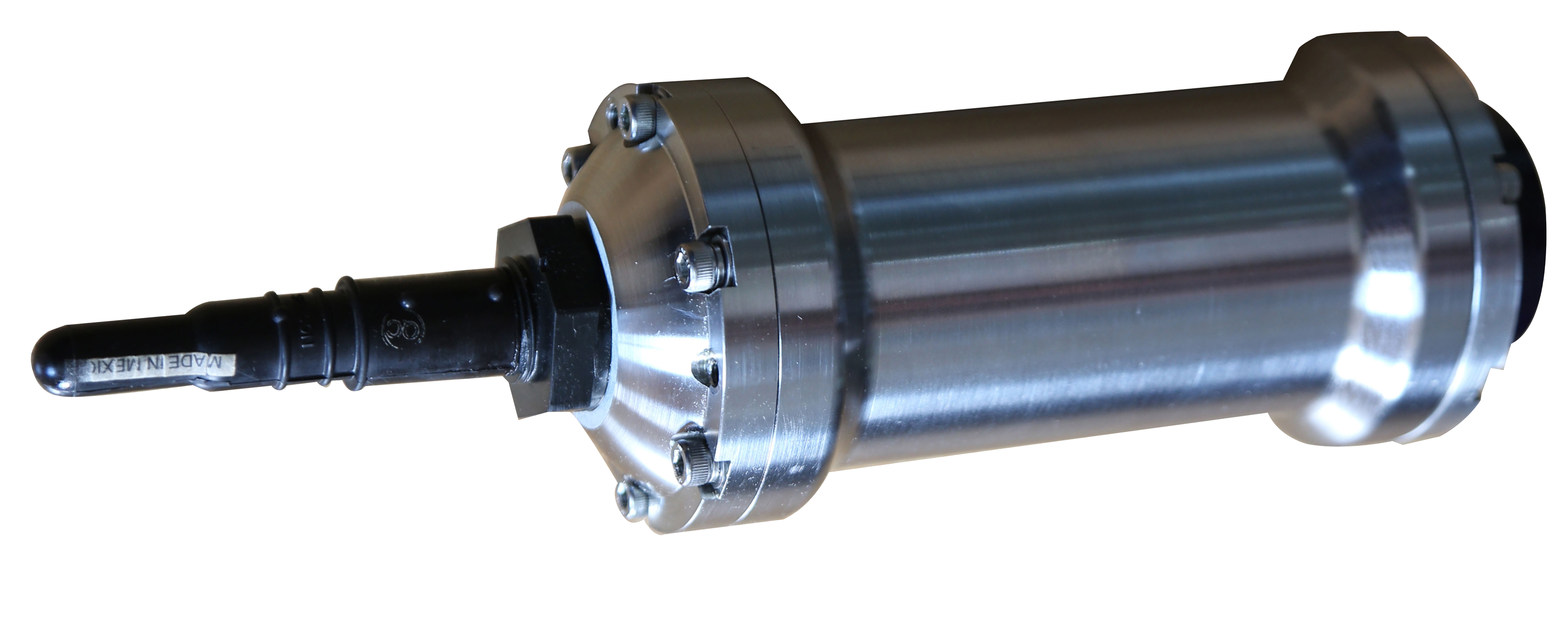

HY1610

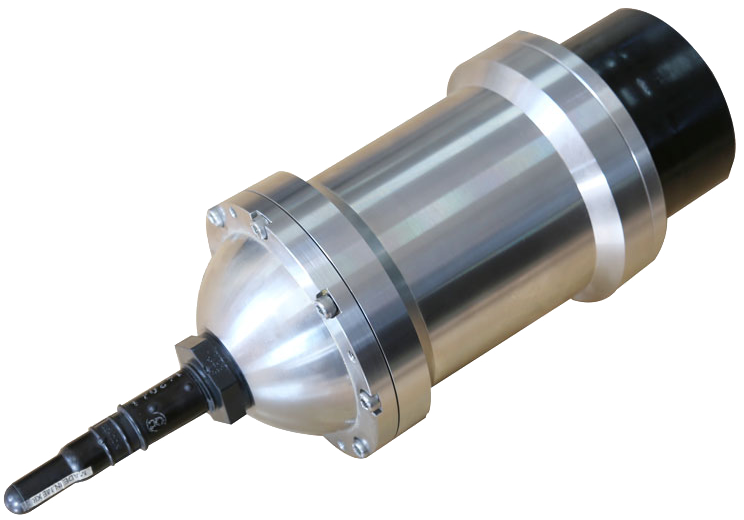

HY1611-3
HY1610/HY1611 Underwater Altimeters
  • Intelligentized bathymetry software with abundant function such as automatic survey controlling, dynamic signal detection, identification and tracking, real-time monitoring and controlling, which ensures high accuracy and reliability of the altimeters.

  • Real-time display and storage of the bathymetric data that are transmitted via the serial port.


The HY1610 and HY1611 underwater altimeters can measure and display the accurate distance from towed objects to the bottom of the water, thus protecting underwater instruments. Altimeters with operation frequency, 208 kHz and 446 kHz are offered for different depth range survey, and it’s allowed to customize as required. The HY1610 and HY1611 are very advanced and reliable which can be integrated in ROV, AUV and other underwater plants.




Contact Us:

Overseas Sales Manager:

Ms. Jing Chai
+86 15895347296
jing.chai@haiyingmarine.com



TypeHY1610HY1611
Operation frequency208kHz
446kHz
Depth range0.5-200m0.3-50m
Beam width≤8°≤6°
Max depth4000m4000m
Accuracy
1cm±0.1%depth1cm±0.1%depth
Transmission pulse0.1~0.5ms0.05~0.4ms(自动调整)
Input voltage
18~36 VDC22~26VDC
Length248mm208mm
Diameter116mm82mm
Weight in air7kg3.5kg
Weight in water5.1kg2.8kg
Cable length0.6m(customized on required)0.6m(customized on required)
