Adjustable pulse width, power, sensitivity and TVG
Optional integrated DGPS, PCs and heave compensators and other peripheral devices
Automatic marking: annotation of number, time, GPS coordinates and heave value
Self-checking and power off memory
Manual and automatic scale change
Thermal recording and LCD display

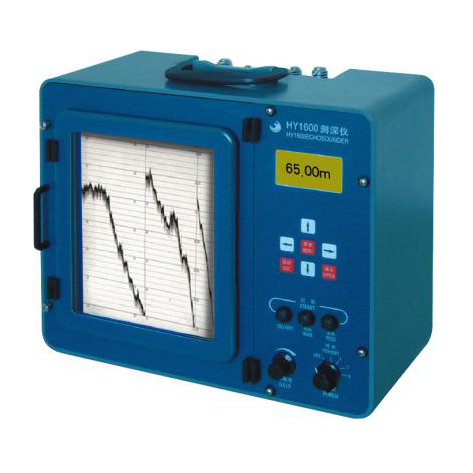

The HY1600A is a portable precise single beam echosounder that adopts new acoustic signal processing technology and circuit design to obtain more accurate sounding data. The system integrates traditional analog recording with advanced digital signal processing technology and underwater tracking gate technology. Even in harsh environments, it performs excellent covering hydrographic applications for shallow waters.
Frequency | 208 kHz |
Beam width | ≤8° |
Depth range | 0.3~300m |
Accuracy | 0.01m ± 0.1% |
Resolution | 1cm |
Output power | 100W |
Input power | 220V AC±20% ； 11VDC-31.2VDC |
Consumption | 50W |
Interface | 3 x RS232 |
Recorder | 8.5''/216mm Thermal printer and LCD display |
Phasing | Manual/Auto scale change |
Chart speed | Auto 1-20cm/min adjustable |
Environmental | Operating temperature: 0°-50°C, 5-90% relative humidity, non-condensing |
Dimension | 400 mm × 330 mm × 165mm (recorder), Φ80 mm×26 mm (transducer), 15m (cable length, customizable), 3×0.7m (Mounting pole) |
Weight | 9.8kg (recorder), 1.5kg (transducer), 5kg (Mounting pole) |
